you should always replace both sides - "you need" quantities are for both sides
reference #
in image |
reference # on EPC |
MB part number |
what? |
generic part |
you need
|
optional
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 167 |
134 |
A108 334 00 25 |
dust cap |
|
|
X
|
| 163 |
128 |
N070 852 03 00 00 |
slotted spindle nut |
|
4
|
|
| 165 |
131 |
A460 994 00 12 |
lock ring |
|
2
|
|
| 193 |
104 |
A463 330 01 25 |
hub |
|
|
X
|
| 194 |
110 |
A463 334 00 19 |
retainer + seal |
|
|
X
|
| 199 |
113 |
A463 34 01 59 |
seal |
|
2
|
|
| 225 |
122 |
A015 997 54 47 |
outer seal |
|
2
|
|
| 205 |
116 |
A009 981 61 05 |
outer bearing |
|
2
|
|
| 217 |
119 |
A009 981 41 05 |
inner bearing |
|
2
|
|
| 223 |
125 |
A015 997 99 47 |
inner seal |
|
2
|
|
| 86 |
74 |
A460 331 05 58 |
inner steel ring |
|
|
X
|
| 94 |
83 |
A460 331 01 80 |
plastic seal |
|
2
|
|
| 97 |
86 |
A460 331 00 80 |
paper gasket |
|
2
|
|
| 85 |
56 |
A460 332 00 33 |
tin cap |
|
4
|
|
| 79 |
53 |
A000 981 59 05 |
king pin bearing |
LM11949
LM11910a |
4
|
|
| 73 |
50 |
A460 997 00 40 |
sealing tin bottom |
|
4
|
|
|
62 |
A460 337 00 49 |
bushing |
|
|
X
|
|
65 |
A008 997 57 47 |
seal |
|
2
|
|
|
|
|
|
|
|
|
|
|
W463 589 00 07 00 |
claw wrench |
|
1
|
|
Which tools do you need?

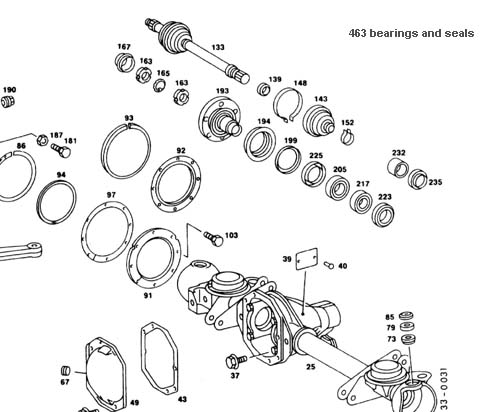

463 parts shown
460 front wheel bearing parts list here
|
